  • viton tubing

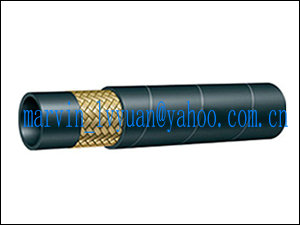

    SAE 100R1AT / DIN EN 1SN

    SAE100R1AT/DINEN1SNHydraulichose/Hydraulictube*Application:Mediumpressurehydraulicapplicationsincludingmobile,machine toolandagriculturalapplicationswhichusingpetroleumorwaterbasedhydraulicfluids. *InnerTube:Nitrile*Reinforcement:Onebraidofhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(sibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa GR1SN-03 3/16 4.8 0.47 11.9 3630 25.0 3.5 89 14520 100.1 0.12 GR1SN-04 1/4 6.4 0.534 13.6 3270 22.5 4.0 102 13080 90.2 0.15 GR1SN-05 5/16 7.9 0.595 15.1 3120 21.5 4.5 114 12480 86.0 0.17 GR1SN-06 3/8 9.5 0.689 17.5 2615 18.0 5.0 127 10460 72.1 0.22 GR1SN-08 1/2 12.7 0.813 20.7 2320 16.0 7.0 178 9280 64.0 0.28 GR1SN-10 5/8 15.9 0.938 23.8 1890 13.0 8.0 203 7560 52.1 0.33 GR1SN-12 3/4 19.0 1.096 27.8 1530 10.5 9.5 241 6120 42.2 0.41 GR1SN-16 1 25.4 1.408 35.8 1280 8.8 12.0 305 5120 35.3 0.62 GR1SN-20 11/4 31.8 1.696 43.1 920 6.3 16.5 419 3680 25.4 0.84 GR1SN-24 11/2  38.1 1.971 50.1 730 5.0 20.0 508 2920 20.1 1.09 GR1SN-32 2 50.8 2.503 63.6 580 4.0 25.0 635 2320 16.0 1.34...

  • viton tubing

    SAE 100R1A / DIN EN 1ST

    SAE100R1A/DINEN1STHydraulicrubberhose*Application:Mediumpressurehydraulicapplicationsincludingmobile,machinetoolandagriculturalapplicationsthatusingpetroleumorwaterbasedhydraulicfluids. *InnerTube:Nitrile*Reinforcement:Onebraidofhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(ibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa GR1SN-03 3/16 4.8 0.5 12.7 3630 25.0 3.5 89 14520 100.1 0.134 GR1SN-04 1/4 6.4 0.626 15.9 3270 22.5 4.0 102 13080 90.2 0.202 GR1SN-05 5/16 7.9 0.689 17.5 3120 21.5 4.5 114 12480 86.0 0.242 GR1SN-06 3/8 9.5 0.78 19.8 2615 18.0 5.0 127 10460 72.1 0.286 GR1SN-08 1/2 12.7 0.906 23 2320 16.0 7.0 178 9280 64.0 0.349 GR1SN-10 5/8 15.9 1.031 26.2 1890 13.0 8.0 203 7560 52.1 0.410 GR1SN-12 3/4 19.0 1.189 30.2 1530 10.5 9.5 241 6120 42.2 0.511 GR1SN-16 1 25.4 1.5 38.1 1280 8.8 12.0 305 5120 35.3 0.706 GR1SN-20 11/4 31.8 1.811 46.0 920 6.3 16.5 419 3680 25.4 0.954 GR1SN-24 11/2  38.1 2.063 52.4 730 5.0 20.0 508 2920 20.1 1.156 GR1SN-32 2 50.8 2.626 66.7 580 4.0 25.0 635 2320 16.0 1.646...

  • viton tubing

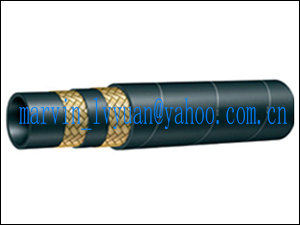

    SAE 100R2AT / DIN EN 2SN

    SAE100R2AT/DINEN2SN*Application:Highpressurehydraulicoillinesusedinconstruction,machinetoolandagriculturalapplications.*InnerTube:NBR*Reinforcement:Twobraidsofhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(ibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa GR2SN-03 3/16 4.8 0.484 12.3 6000 41.4 3.5 89 24000 165.5 0.20 GR2SN-04 1/4 6.4 0.593 15.1 5800 40.0 4.0 102 23200 160.0 0.24 GR2SN-05 5/16 7.9 0.649 16.5 5075 35.0 4.5 114 20300 140.0 0.29 GR2SN-06 3/8 9.5 0.753 19.1 4800 33.1 5.0 127 19200 132.4 0.34 GR2SN-08 1/2 12.7 0.875 22.2 4000 27.6 7.0 178 16000 110.3 0.43 GR2SN-10 5/8 15.9 1 25.4 3630 25.0 8.0 203 14520 100.1 0.50 GR2SN-12 3/4 19.0 1.157 29.4 3120 21.5 9.5 241 12480 86.0 0.61 GR2SN-16 1 25.4 1.5 38.1 2400 16.5 12.0 305 9600 66.2 0.88 GR2SN-20 11/4 31.8 1.877 47.7 1820 12.5 16.5 419 7280 50.2 0.29 GR2SN-24 11/2  38.1 2.129 54.1 1310 9.0 20.0 508 5240 36.1 1.61 GR2SN-32 2 50.8 2.627 66.7 1160 8.0 25.0 635 4640 32.0 1.98...

  • viton tubing

    SAE 100R2A / DIN EN 2ST

    SAE100R2A/DINEN2ST*Application:Highpressurehydraulicoillinesusedinconstruction,machinetoolandagriculturalapplicationsusingpetroleumorwaterbasedhydraulicfluids.  *InnerTube:NBR*Reinforcement:Twobraidsofhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(ibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa GR2SN-03 3/16 4.8 0.626 15.9 6000 415.0 3.5 89 24000 165.5 0.255 GR2SN-04 1/4 6.4 0.689 17.5 5800 40.0 4.0 102 23200 160.0 0.296 GR2SN-05 5/16 7.9 0.752 19.1 5075 35.0 4.5 114 20300 140.0 0.356 GR2SN-06 3/8 9.5 0.843 21.4 4800 33.0 5.0 127 19200 132.4 0.413 GR2SN-08 1/2 12.7 0.969 24.6 4000 27.5 7.0 178 16000 110.3 0.433 GR2SN-10 5/8 15.9 1.094 27.8 3630 25.0 8.0 203 14520 100.1 0.504 GR2SN-12 3/4 19.0 1.252 31.8 3120 21.5 9.5 241 12480 86.0 0.726 GR2SN-16 1 25.4 1.563 39.7 2400 16.5 12.0 305 9600 66.2 1.015 GR2SN-20 11/4 31.8 2 50.8 1820 12.5 16.5 419 7280 50.2 1.593 GR2SN-24 11/2  38.1 2.252 57.2 1310 9.0 20.0 508 5240 36.1 1.882 GR2SN-32 2 50.8 2.748 69.8 1160 8.0 25.0 635 4640 32.0 2.365...

  • viton tubing

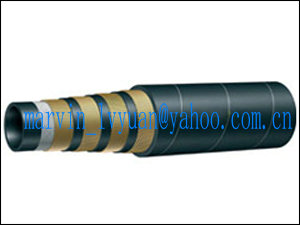

    DIN EN 856 4SH

    DINEN8564SH*Application:Veryhighpressure,usedforpetroleumbasedhydraulicfluids.*InnerTube:NBR*Reinforcement:Fouralternatinglayersofspiraledhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(ibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa G4SH-12 3/4 19 1.268 32.2 6000 41.4 11.0 279 24000 165.5 1.06 G4SH-16 1 25.4 1.524 38.7 5500 37.9 13.5 343 22000 151.7 1.30 G4SH-20 11/4 31.8 1.791 45.5 4700 32.4 18.5 470 18800 129.6 1.65 G4SH-24 11/2 38.1 2.106 53.5 4200 29.0 22.5 572 16800 115.8 2.19 G4SH-32 2 50.8 2.681 68.1 3650 25.2 28.0 711 14600 100.7 3.13...

  • viton tubing

    DIN EN 856 4SP

    DINEN8564SPHighpressurehydraulichose*Application:Veryhighpressure,usedforpetroleumbasedhydraulicfluids.*InnerTube:NBR*Reinforcement:Fouralternatinglayersofspiraledhigh-tensilesteelwire*CoverCompound:Neoprene*TemperatureRang:-40¡æ¡«+100¡æ*Specification: PartNo. HoseSideID HoseSideOD Max.WorkingPressure Min.BendRadius Min.BurstPressure Weight(ibs/foot) Inch mm Inch mm psi Mpa Inch mm psi Mpa G4SP-04 1/4 6.4 0.705 17.9 6500 45.2 6.0 152 26200 180.6 0.39 G4SP-06 3/8 9.5 0.843 21.4 6450 44.5 7.0 178 25800 177.9 0.50 G4SP-08 1/2 12.7 0.969 24.6 6000 41.4 9.0 229 24000 165.5 0.59 G4SP-10 5/8 15.9 1.11 28.2 5000 34.5 10.0 254 20000 137.9 0.73 G4SP-12 3/4 19 1.268 32.2 5000 34.5 12.0 305 20000 137.9 0.97 G4SP-16 1 25.4 1.563 39.7 4000 27.6 13.5 343 16000 110.3 1.33...
